7 Axis & 8-Axis Swiss-Type CNC Screw Machine
w/Removable Guide Bushing and Y-Axis Subspindle
Tools
The Swistek RB20 (7-axis) and RB20Y (8-axis) HYBRID offers a sliding headstock Swiss- Type CNC Lathe with an optional Removable Guide Bushing that offers Precision, Reliability, Performance, Speed and Capability at a very economical price compared to the competition . The Use of NSK Bearings, Ball Screws and Super Precision Linear ways help to achieve optimal accuracy and repeatability on those tight tolerance parts.
The Swistek RB20Y can have up to 20 Live Tool Positions (RB20 can have up to 16 Live) and has a 20mm bar capacity with the Guide Bushing and without the guide bushing. Running as a Non-Guide-Bush-Type adds cost savings with shorter bar remnants eliminates the guide bushing and the need for centerless ground bar stock, it also allows for more concentric and rounder parts (Part Length Ratio for Removing Guide Bushing: Max. Part Length = 3.5 x Bar Dia.)
The Swistek RB20/RB20Y HYBRID is truly the most Economical, Precise and Versatile Swiss Turn in it class today!
Key Features
RB20
- 4 Position Back working
- 20mm Bar Capacity
- 9.840" Main Spindle Stroke
- 7 Axis
- Independent Subspindle
- FANUC 32i-B Control
- HYBRID Removable Guide Bushing
- Rapid Traverse Rate 1,290ipm
- Synchronous Rotary Guide Bushing
- Up to 19 Live Tools
- Up to 41 Tools Total
- C-Axis Main and Subspindle
- 5HP Main/Sub Spindle
- Rotating Part Conveyor
- Chip Conveyor with Cart
- Huge Array of attachments
RB20Y
- 8 Position Y axis Back working
- 20mm Bar Capacity
- 9.840" Main Spindle Stroke
- 8 Axis
- Independent Subspindle
- FANUC 32i-B Control
- HYBRID Removable Guide Bushing
- Rapid Traverse Rate 1,290ipm
- Synchronous Rotary Guide Bushing
- Up to 23 Live Tools
- Up to 47 Tools Total
- C-Axis Main and Subspindle
- 5HP Main/Sub Spindle
- Rotating Part Conveyor
- Chip Conveyor with Cart
- Huge Array of attachments
Tooling & Axis Layout

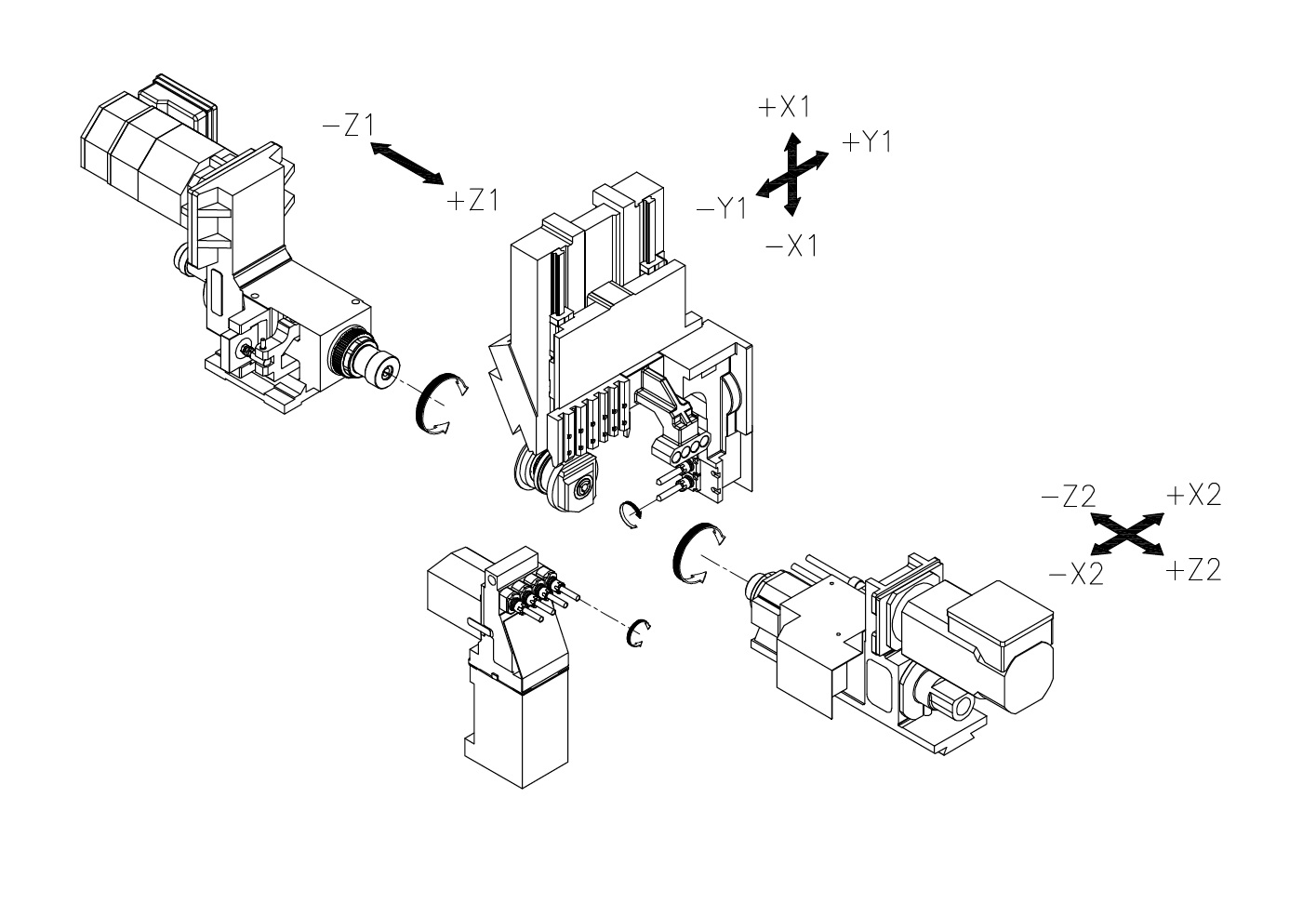

RB20

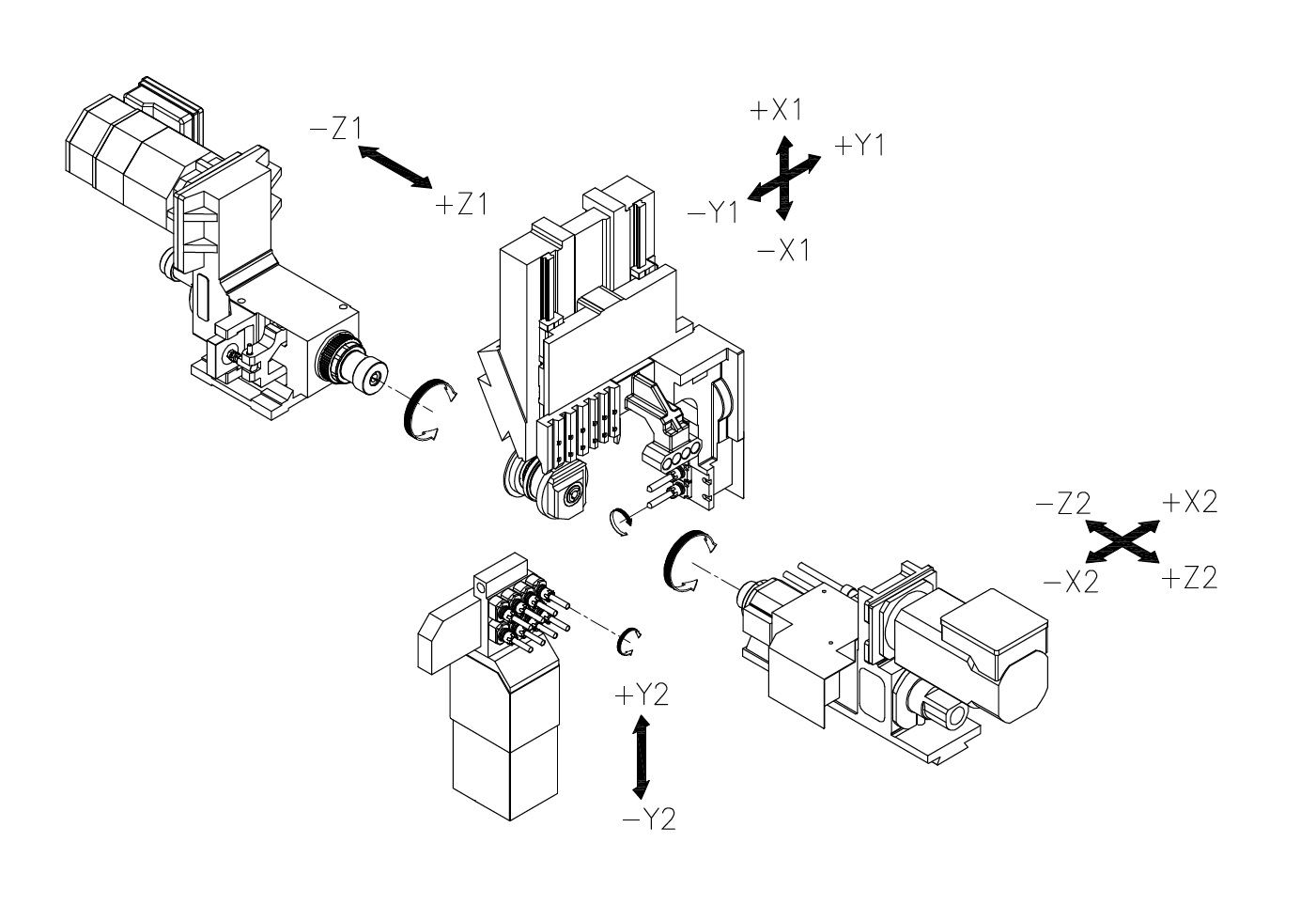

RB20Y

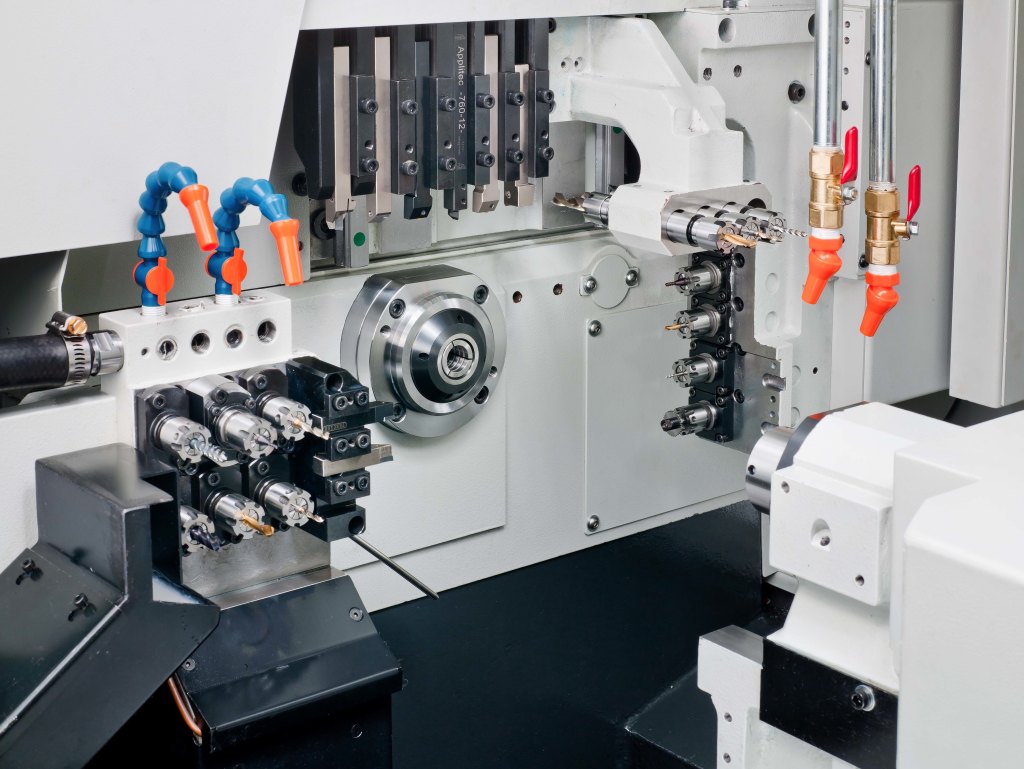

Versatile tooling layout for your simple to most complex parts with an optional 8-position live tool 4-axis on sub-spindle side.

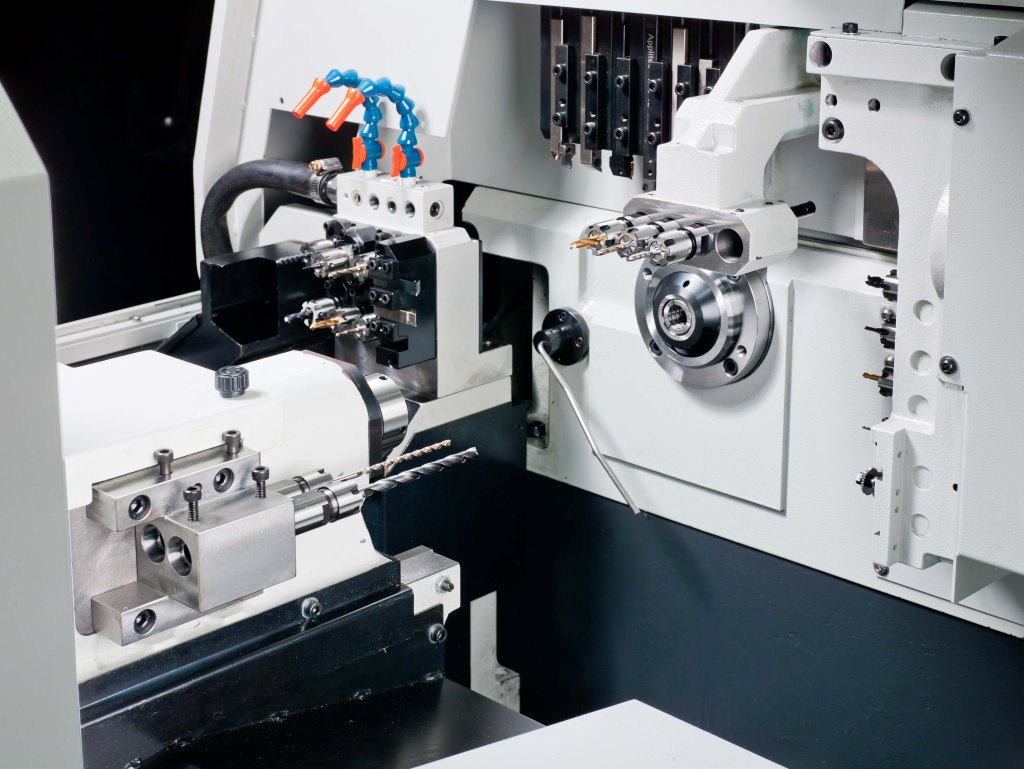

2-position long-drilling attachment standard on RB20/RB20Y.

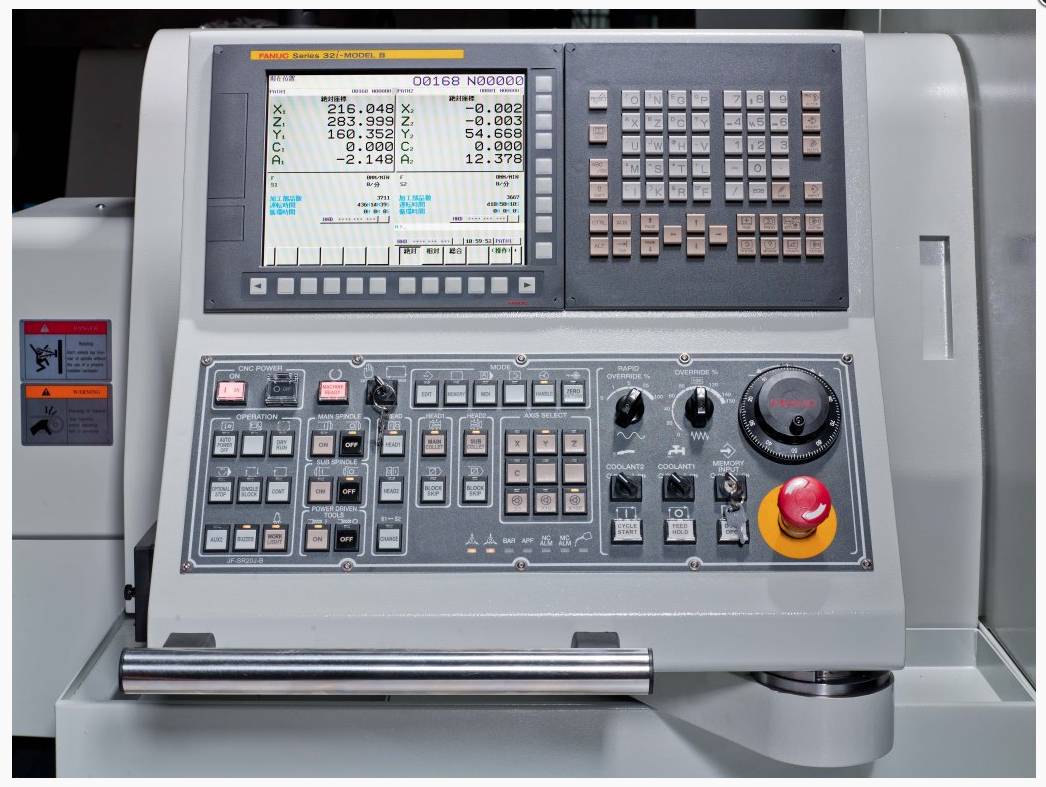

FANUC 32i standard on RB20/RB20Y.
